How to Detect and Prevent Hot-Runner Manifold Leaks
Introduction to Hot-Runner Manifolds
Hot-runner systems are a pivotal component in modern injection molding, contributing to efficiency and part quality by keeping the plastic in a molten state until it reaches the mold cavity. However, these systems are not without their challenges, particularly concerning leaks. Leaks in hot-runner manifolds can lead to significant production issues, including wasted material, machine downtime, and poor part quality. Understanding how to detect and prevent these leaks is crucial for any manufacturer relying on this technology.
Based on years of industry experience, this guide offers a comprehensive examination of detecting and preventing hot-runner manifold leaks. Whether you’re a seasoned technician or new to the process, the following insights will equip you with the knowledge to manage these systems more effectively.
Understanding the Causes of Leaks
Before we dive into detection and prevention methods, it’s vital to understand what typically causes leaks in hot-runner manifolds. Most often, these leaks are a result of improper startup procedures, inadequate maintenance, or component wear. The startup process is particularly critical since it affects the thermal expansion of the manifold and nozzles. Inadequate soak times during startup can lead to improper sealing, which is the most common point of leakage.
Furthermore, factors such as misalignment of components, contamination from dirt or debris, and thermal cycling can exacerbate these issues over time. Knowledge of these causes allows technicians to remain vigilant and proactive in their approach, contributing to a more efficient production process.
Essential Tools and Methods for Leak Detection
Detecting leaks in hot-runner systems can be approached through several means, including electronic monitoring and manual inspection. Modern hot-runner systems often come equipped with ‘smart’ controllers that can track temperature variances across the manifold. If a leak occurs, the excess plastic acting as a heat sink will cause a rise in power demand to maintain the set temperatures, triggering an alarm on the controller.
In addition, installing thermocouples at critical junctions along the system aids in early leak detection. Manual inspections also play a key role; visual checks around the manifold can reveal signs of leakage. If you notice molten plastic escaping, it’s a clear indicator of underlying issues that require immediate attention.
Performing Visual Inspections
Visual inspection is an indispensable aspect of maintaining a hot-runner system. Conducting periodic checks can help identify external leaks, visible as excess resin pooling around connections or hoses. Additionally, examining the area where the nozzle meets the mold sprue is crucial; any misalignment can lead to leaks as plastic is forced past the connection.
When carrying out visual inspections, it’s beneficial to have an outline of areas to check, as this will streamline the process. Look for signs of material buildup, discoloration, or residue around seal areas, as these can indicate where leaks may occur in the future. Inspecting with a flashlight can sometimes make leaks more evident, especially in shaded areas where molten plastic might not immediately be visible.
Methods of Leak Prevention
Prevention is always better than cure. One effective method of preventing leaks involves ensuring that all components are spotless and correctly assembled. Even minor foreign particles can disrupt the seal between the manifold and nozzles, leading to inevitable leaks over time. Regularly cleaning and inspecting these components during maintenance cycles is essential to maintain optimal functionality.
Another preventive method includes implementing an ideal startup procedure. As previously mentioned, understanding the correct thermal soak times for both the manifold and nozzles is fundamental. Not only should the manifold be heated before nozzles to allow for proper expansion, but specific temperatures and soak durations should be documented and adhered to religiously.
In-Press Servicing Best Practices
In-press servicing, while convenient, comes with its own set of challenges, notably concerning temperature variances between the cavity plate and the nozzle/manifold plate. When servicing in the press, it’s critical to ensure the two plates maintain a similar temperature; ideally, they should not differ by more than 10°F to avoid misalignment that might compromise the nozzle seals.

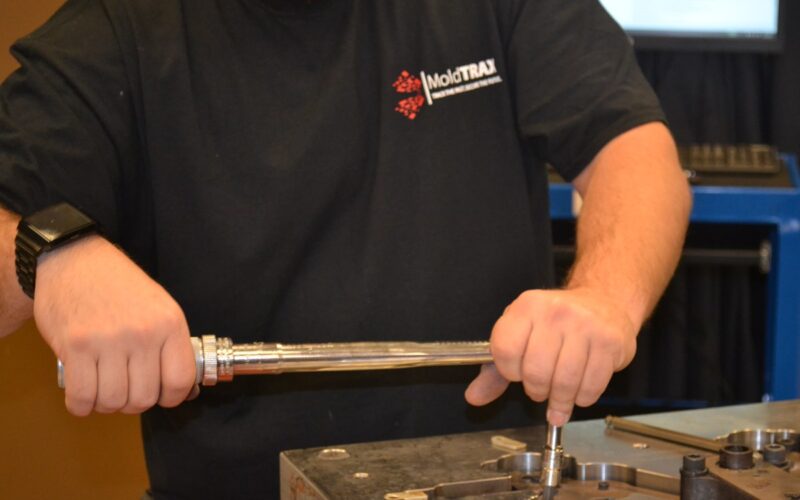

Technicians should also be cautious during reassembly, as even slight misalignments when clamping can damage the seals. Implementing a controlled and orderly procedure can help minimize errors that lead to leaks. Regular training sessions focusing on these best practices can also enhance the proficiency of your team and reduce incidents.
Regular Maintenance and Documentation
Documenting every maintenance activity is essential for tracking the condition and performance of hot-runner systems. Create a maintenance log detailing inspections, repairs, and any abnormalities noted during routine checks. This log serves not only as a record but also as a valuable tool for identifying trends over time and spotting potential issues before they escalate.
Regular maintenance intervals should be adhered to, focusing on disassembling and inspecting components, especially the nozzle and manifold joint. Checking for any signs of wear and tear, in conjunction with cleaning off any excess resin build-up, can help prolong the life of your hot-runner system and minimize leak occurrences.
Conclusion
Hot-runner manifold leaks pose a notable challenge in the injection molding sector. However, with a proactive approach involving effective detection, thorough inspections, diligent maintenance, and prevention strategies, manufacturers can significantly mitigate these issues. Educating your team and adhering to best practices is crucial to leveraging the full capabilities of your hot-runner systems.
Ultimately, a seamless operation requires the commitment of all team members to prioritize maintenance and awareness. By cultivating knowledge and implementing structured procedures, you will enhance productivity, product quality, and profitability in your molding operations.
ABOUT THE AUTHOR: Steve Johnson is the President of MoldTrax Maintenance Solutions in Ashland, Ohio, a provider of maintenance training products and services. His 40 years of experience in the tooling industry includes eight years as senior tooling engineer for Abbott Laboratories and 24 years as a toolmaker at Calmar Inc. Prior to Calmar, he served six years in the U.S. Navy working as a jet mechanic on the A4L Skyhawk, and majored in mechanical engineering at Southern State University. He designed and developed the MoldTrax documentation software system for tracking mold performance and maintenance. Contact 419-281-0790; steve@moldtrax.com; moldtrax.com
